Chemical & Process Industry Project
Fabrication of a reactor vessel for controlled chemical reaction processes in the chemical and process industry. The project involved the manufacturing, inspection, assembly, and delivery of a pressure vessel designed to operate under demanding process conditions involving elevated pressure and temperature.
The vessel was fabricated in accordance with ASME Section VIII requirements and supplied as part of a process equipment package for a chemical production facility.
Project Information
| Item | Details |
|---|---|
| Project | Reactor Vessel |
| Industry | Chemical & Process Industry |
| Client | EPC Contractor |
| Design Code | ASME Section VIII |
| Inspection | TPI (TÜV / SGS) |
| Application | Chemical Processing |
| Scope | Fabrication & Delivery |
Scope of Supply
The project included:
- Reactor vessel fabrication
- Process equipment manufacturing
- Internal component installation (if required)
- Nozzle and piping connections
- Structural support fabrication
- Inspection and testing
- Delivery preparation
All fabrication activities were completed according to approved engineering drawings and project quality requirements.
Equipment Description
Reactor Vessel Shell
The vessel shell was fabricated from pressure vessel grade materials and manufactured using qualified forming and welding procedures. Particular attention was given to dimensional accuracy and weld quality to ensure compliance with design requirements.
Internal Components
Depending on the process application, the vessel was designed to accommodate internal components such as distributors, supports, baffles, or other reaction-related internals.
Nozzles and Connections
Process nozzles, manways, vents, drains, and piping interfaces were installed according to the approved design to facilitate integration into the production system.
Support Structures
Structural supports were fabricated to provide stability during transportation, installation, and operation.
Manufacturing Process
Material Preparation
All raw materials were inspected and verified before fabrication to ensure compliance with project specifications.
Shell Forming
Steel plates were rolled and formed into cylindrical sections according to the required vessel dimensions.
Welding and Assembly
Shell sections, heads, nozzles, and support structures were assembled and welded using qualified welding procedures.
Final Assembly
After fabrication, all components were assembled and prepared for inspection and testing.
Inspection and Testing
A comprehensive inspection program was implemented throughout production, including:
- Material traceability verification
- Visual inspection
- Dimensional inspection
- Welding inspection
- Non-destructive testing (NDT)
- Hydrostatic testing when required
- Final quality inspection
- Third-party witness inspection
Independent inspection agencies such as TÜV and SGS participated according to client requirements.
Key Features
Designed for Chemical Processing
The vessel was engineered for chemical reaction processes requiring reliable containment and process stability.
High-Pressure and High-Temperature Capability
The design supports operation under demanding pressure and temperature conditions commonly encountered in chemical production facilities.
ASME Section VIII Compliance
Fabrication and inspection activities followed recognized pressure vessel standards and project specifications.
Third-Party Inspection
Independent inspection services were available throughout fabrication and testing.
Reliable Industrial Performance
The completed vessel was designed for long-term operation in chemical and process industry environments.
Applications
Reactor vessels are widely used in:
- Chemical manufacturing plants
- Petrochemical facilities
- Specialty chemical production
- Pharmaceutical processing
- Resin and polymer production
- Industrial reaction systems
Project Gallery
Shell Rolling
Fabrication and forming of vessel shell sections.
Welding Operations
Execution of qualified welding procedures during vessel manufacturing.

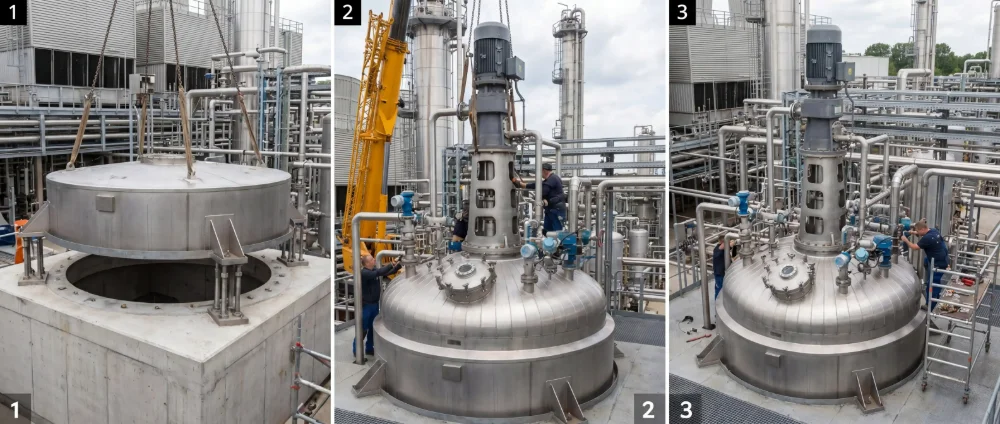

Equipment Assembly
Assembly of vessel components, nozzles, and structural elements.
Final Vessel
Completed reactor vessel prepared for shipment and installation.
